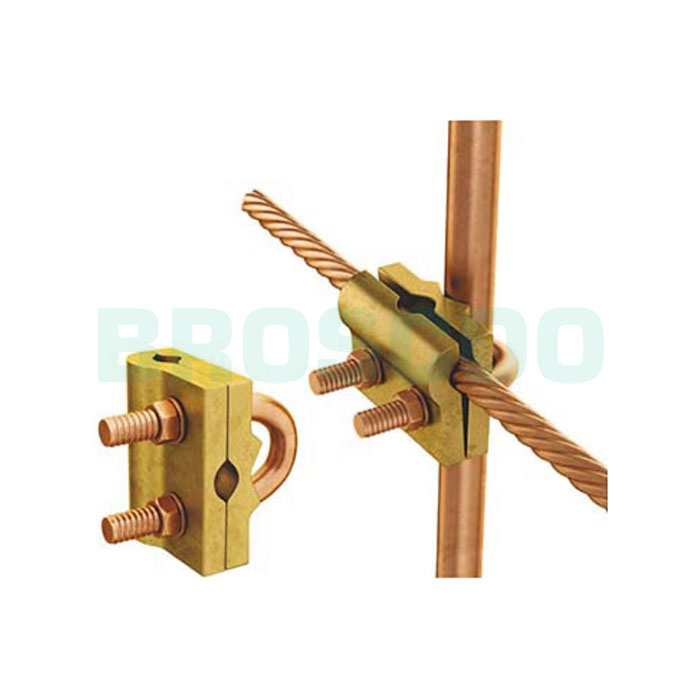

U BOLT PIPE TO CABLE CLAMP(TYPE PUB)
U bolt Pipe To Cable Clamp are used for universal parallel or 90 C connection of cable to pipe.It is also for fence post grounding connection.
Specification

Rod Diameter (mm)	Conductor Range (mm²)	Materials
Rod Diameter (mm)	Conductor Range (mm²)	Body	U Bolt	Nut & Washer
1/2" or 3/4"	35-95	Brass/Gunmetal	Copper	Brass/Stainless
1" or 1½"	35-95	Brass/Gunmetal	Copper	Brass/Stainless
2" or 2½"	35-95	Brass/Gunmetal	Copper	Brass/Stainless
3" or 4"	35-95	Brass/Gunmetal	Copper	Brass/Stainless
5" or 6"	35-95	Brass/Gunmetal	Copper	Brass/Stainless

Notice:Customized Design and OEM Is Welcomed.

Prev:U BOLT ROD TO CABLE CLAMP(TYPE GUV)

Next:U BOLT ROD TO CABLE CLAMP(TYPE KUV)

BROSCOO ELECTRICAL 株式会社

U BOLT PIPE TO CABLE CLAMP(TYPE PUB)

U BOLT PIPE TO CABLE CLAMP(TYPE PUB)

Related Products

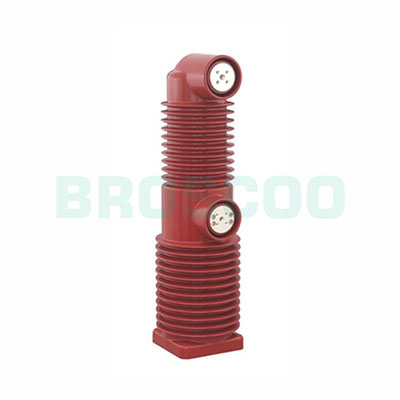

Embedded Pole for Circuit Breaker(625G)40.5kV

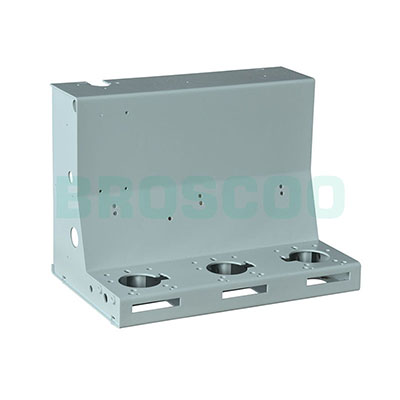

VBI Circuit Breaker Frame
