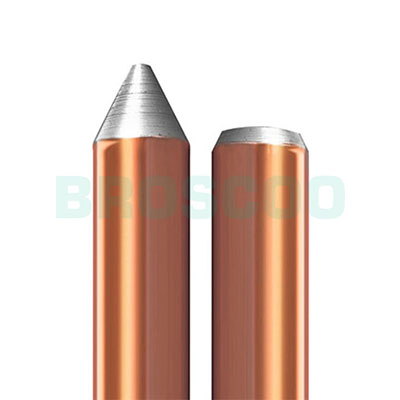

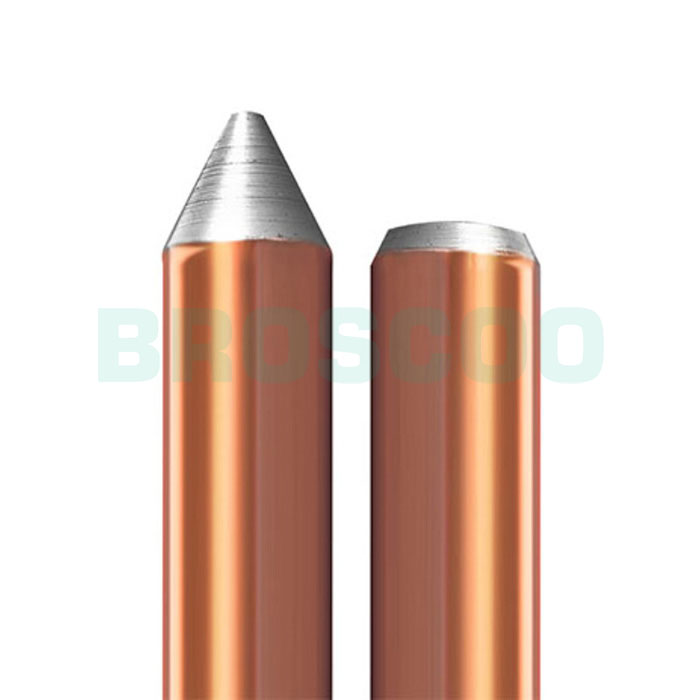

COPPERBOND EARTH ROD
99.95% pure copper & Q235 low carbon steel
Tensile Strength > 570N/mm
To be Bent 180 degreens without Cracks
No tear when driven to the ground
Usage Life more than 50 years
Coating Thickness(mm):0.33 / 0.254 / 0.2 / 0.15 / 0.1 / 0.05 / 0.025
UNTHREADED TYPE
Rod Diameter
mm |
Length
mm |
| 12.7 |
1200 |
| 12.7 |
1500 |
| 12.7 |
1800 |
| 12.7 |
2400 |
| 12.7 |
3000 |
| 14.2 |
1200 |
| 14.2 |
1500 |
| 14.2 |
1800 |
| 14.2 |
2400 |
| 14.2 |
3000 |
| 17.2 |
1200 |
| 17.2 |
1500 |
| 17.2 |
1800 |
| 17.2 |
2400 |
| 17.2 |
3000 |
| 23.0 |
2400 |
| 23.0 |
3000 |
|
THREADED TYPE
Rod Diameter
mm |
Length
mm |
Thread Diameter
mm |
| 12.7 |
1200 |
9/16" |
| 12.7 |
1500 |
9/16" |
| 12.7 |
1800 |
9/16" |
| 12.7 |
2400 |
9/16" |
| 12.7 |
3000 |
9/16" |
| 14.2 |
1200 |
5/8" |
| 14.2 |
1500 |
5/8" |
| 14.2 |
1800 |
5/8" |
| 14.2 |
2400 |
5/8" |
| 14.2 |
3000 |
5/8" |
| 17.2 |
1200 |
3/4" |
| 17.2 |
1500 |
3/4" |
| 17.2 |
1800 |
3/4" |
| 17.2 |
2400 |
3/4" |
| 17.2 |
3000 |
3/4" |
| 23.0 |
2400 |
1" |
| 23.0 |
3000 |
1" |
|
Notice:Customized design and OEM are welcomed.
