Stranding No./Dia(mm) |
Nominal Diameter (mm) |
CSA (mm2) |
Material |

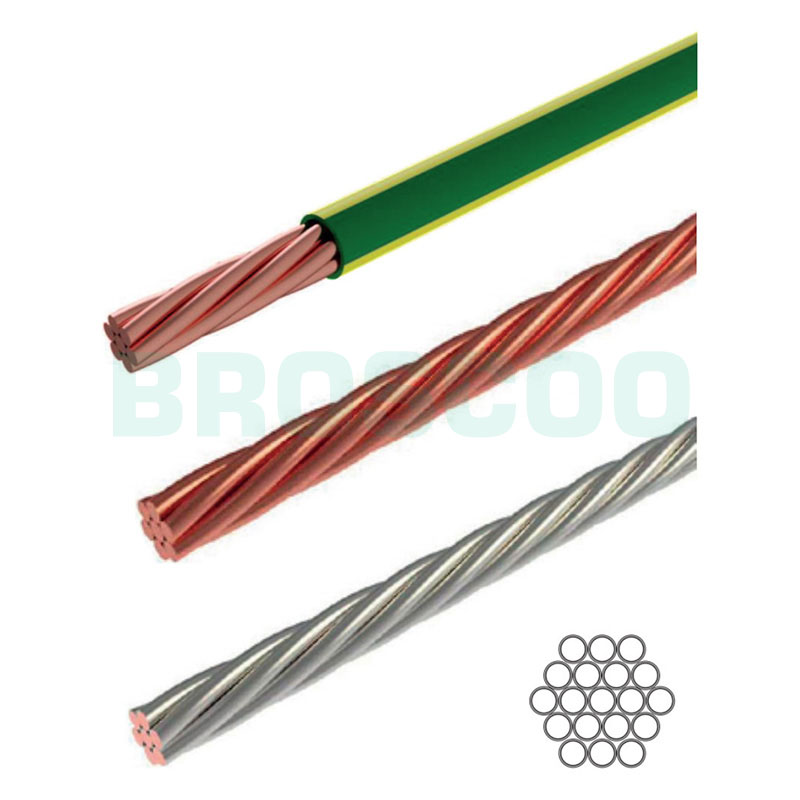

| 7/1.70 | 5.10 | 16 | Stranded Copper Cable |
| 7/2.14 | 6.42 | 25 | Stranded Copper Cable |
| 7/2.52 | 7.56 | 35 | Stranded Copper Cable |
| 19/1.78 | 8.90 | 50 | Stranded Copper Cable |
| 19/2.14 | 10.70 | 70 | Stranded Copper Cable |
| 19/2.52 | 12.60 | 95 | Stranded Copper Cable |
| 37/2.03 | 14.21 | 120 | Stranded Copper Cable |
| 37/2.25 | 15.75 | 150 | Stranded Copper Cable |
| 37/2.52 | 17.64 | 185 | Stranded Copper Cable |
| 61/2.25 | 20.25 | 240 | Stranded Copper Cable |
| 61/2.52 | 22.68 | 300 | Stranded Copper Cable |
| 61/2.85 | 25.65 | 400 | Stranded Copper Cable |
